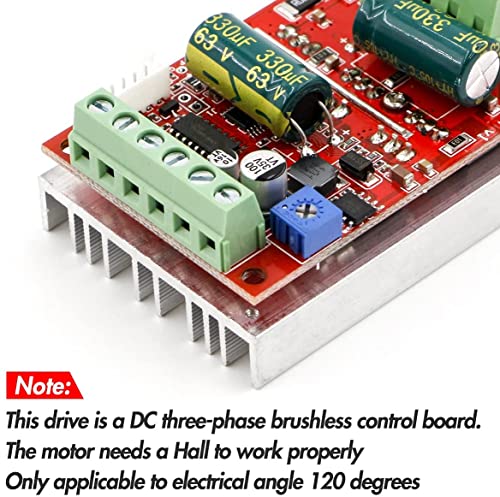

RioRand 350W 6-60V 3-Phase PWM DC Brushless Motor Speed Controller
with Hall Sensor – for 120° Electric Angle Brushless DC Motors, DIY Robotics, Electric Tools & PLC SystemsUSD $18.99
Condition : NEW
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
- 3-Phase BLDC Motor Compatibility & Core Specs：This controller operates exclusively with 120° electric angle 3-phase brushless DC motors equipped with Hall sensors. It supports a 6-60V DC input, delivers 200-300W rated power (350W peak) with 16A continuous (20A peak) output, and enables PLC-compatible 0-5V analog or PWM (2.5-5V amplitude, 50Hz-20kHz frequency) speed control—ideal for DIY robotics, small electric tools, brushless pumps, cooling fans, and industrial automation setups.
- Multi-Mode Speed & Direction Control：Adjust speed via the on-board potentiometer, external 0-5V analog input, external potentiometer, or PWM signal. It integrates forward/reverse, stop, and brake functions: note that forward/reverse and brake operations use hard commutation, so reduce speed throttle to below 50% before activation to protect power components from damage.
- Practical Design & Safety Guidelines:Features terminal block interfaces for easy wiring and a standard heat sink for stable heat dissipation. Built-in overcurrent protection safeguards the motor output; the main power circuit lacks a fuse, so external fusing is recommended. Reversing DC power polarity will permanently damage on-board chips, even under brief high-current conditions.
- Safe Initial Testing & Wiring Troubleshooting:For first use, test with low voltage (7-12V) and low current (1-3A) to validate wiring. If the motor jitters, fails to start, or runs in one direction only, adjust the sequence of the 3 motor phase wires (6 possible combinations, only one correct) to resolve mismatches—avoid high-current/high-voltage testing during troubleshooting to prevent module damage.
- Wide Application Scenarios:Suited for a range of projects: DIY robotics and model vehicles, small electric tools (mini drills, grinders), industrial automation (conveyors, lab mixers), fluid equipment (brushless water pumps, fans), and PLC-controlled systems, offering reliable speed regulation for brushless motor setups.
- Color: Red
- Weight: 0.16975594174
